Thông tin chi tiết sản phẩm:
|
| Tên mặt hàng: | SINO TTL ROHS 2 Trục đọc kỹ thuật số SDS2MS | Sử dụng: | 2 trục Quy trình đề xuất |
|---|---|---|---|
| Hệ thống: | 2 trục LED DRO SDS2MS | mô hình quy mô: | KA-300 với KA-500 |
| Tín hiệu: | TTL và rs422 có thể được tùy chọn | Nghị quyết: | 0,005 / 0,001 / 0,0005mm có thể được lựa chọn |
| gắn DRO: | Hộp điện bằng giá 90 độ | Meas. Sởi. travel du lịch: | X trục x: 270 ~ 520mm / z trục: 770 ~ 1020mm |
| Hiển thị: | Đèn LED 2 trục | Điện áp: | Series 100V - 240V / ka: 5V |
SINO TTL RoHS 2 Axis Digital Readout SDS2MS For Lathe , Multifunctional DRO Measuring Systems with linear encoder
Company Profile:Guangzhou SINO International Trade Co., Ltd.
Overview: This company is a subsidiary of the SINO group since 1989, specializing in advanced high-precision measuring & positioning tools,
including digital readout systems, linear grating scales, magnetic encoders, and angle encoders. It has been certified by IS09001, CE, and RoHS certificates.
They are active exporters to Europe, North America, South America & Southeast Asian.
This digital readout system is designed specifically for the positioning of a 2-axis lathe machine.
The SDS2MS DRO should be mounted on the lathe's electrical box using a 90-degree rack.
The KA-300 linear grating scale is intended for the Z-axis, while the KA-500 linear grating scale is intended for the X-axis.

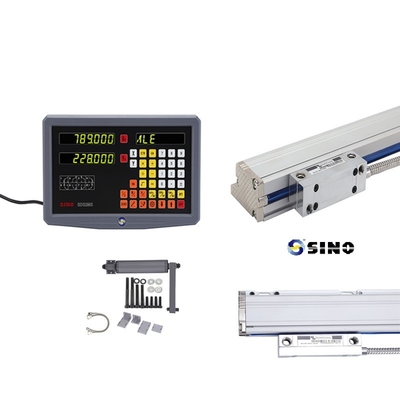

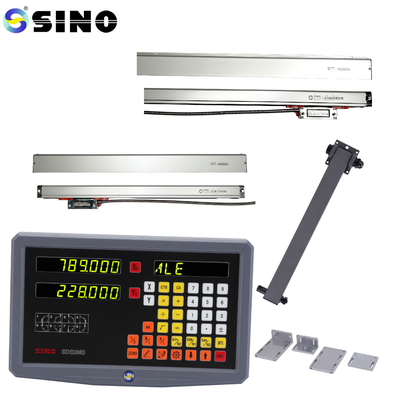

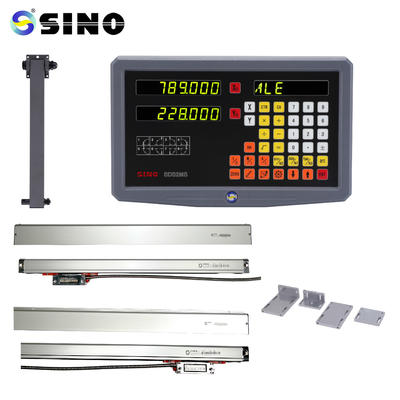

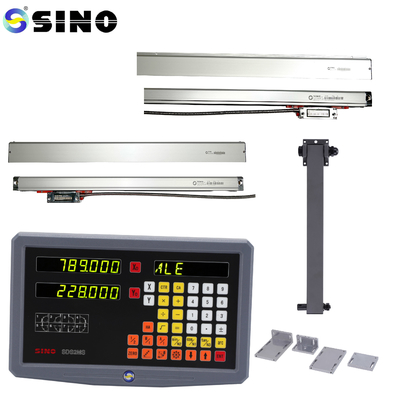

Package list:
| Item name | 2 axis economy LED lathe digital readout set |
| Digital Readout (DRO) | SDS2MS |
| Linear scale for axis Z | KA-300 720-1020mm |
| Linear scale for axis X | KA-500 270-520mm |
| Rack for DRO | Rack for lathe |
| Protection cover for Z scale | Type D |
| Protection cover for X scale | Type H |
| Bracket for scales |
T-bracket (1set) / KA-500 bracket (1pc) |
| Others | Cable / Screws / Manual |
Functions for lathe machine:
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
It's a sample that a DRO is mounting on the electric box of a lathe:
It's a sample that KA-500 linear encoder on axis X of lathe:
It's a sample that KA-300 linear encoder on axis Z of lathe:
