Thông tin chi tiết sản phẩm:
|
| Name: | SINO SDS2-3VA Digital Readout | Number of Axis: | 2 / 3 axis |
|---|---|---|---|
| Case: | Plastic | Display: | TFT LCD |
| Signal: | TTL / RS422 | Voltage: | AC 100V-240V |
| Usage: | All kinds of machine | Language: | Chinese / English / Deutsch / French / Espanol |
SINO SDS2-3VA Digital Readout Multilingual Digital Read Out System With 100V-240V DRO 3 Axis Kit
Company Profile
Guangzhou SINO International Trade Co., Ltd.
Overview: This company is a subsidiary of the SINO group since 1989, specializing in advanced high-precision measuring & positioning tools,
including digital readout systems, linear grating scales, magnetic encoders, and angle encoders. It has been certified by IS09001, CE, and RoHS certificates.
They are active exporters to Europe, North America, South America & Southeast Asian.
The SDS2-3VA is an economical TFT DRO and an upgraded version of the SDS2 series. It incorporates the latest 16-bit SCM technology and supports high-frequency A/B signal input up to 5 MHz. This makes it suitable for a wide range of machines, including high-precision coordinate boring machines, floor boring machines, grinding machines, lathes, milling machines, and more. The plastic casing reduces the weight, making it more cost-effective for transportation. Additionally, the SDS2-3VA features a TFT LCD screen to meet a variety of different requirements.
Strengthen Functions:
Enhanced Calculator Function:
The SDS2 series allows you to adjust the decimal digits to three, four, or five digits, enhancing the calculation precision.
Non-Linear Error Compensation:
The system offers up to 40 sections of non-linear error compensation, improving machining accuracy.
Selectable Decimal Digits in Inch Mode:
In inch mode, you can choose between 4 or 5 decimal digits. The 4-digit option meets long scale requirements, while the 5-digit option provides high-precision display.
Specifications :
Supply Voltage Range: AC 80V~260V, 50~60Hz; US Plug available
Power Consumption: 15VA
Operating Temperature: 0~45°C
Storage Temperature: -30~70°C
Allowable Input Signal for Readout: TTL/RS422 Square Wave
Allowable Input Signal Frequency: Less than 5MHz
Maximum Resolution of Digital Display Length: 0.5µm
Minimum Resolution of Digital Display Angle: 0.0001/pulse
| 1 PC | TFT LCD digital readout SDS2-3VA |
| 1 PC | Transparent cover |
| 1 PC | Instruction Manual (English) |
| 1 PC | Power Cable |

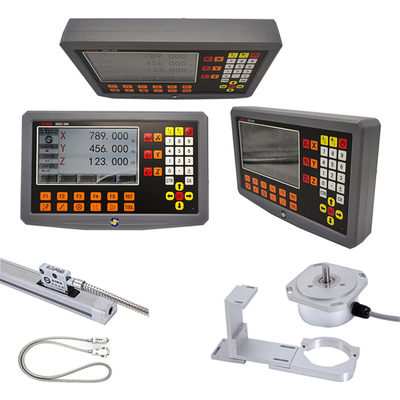

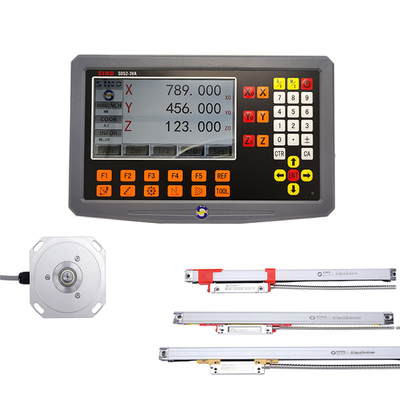

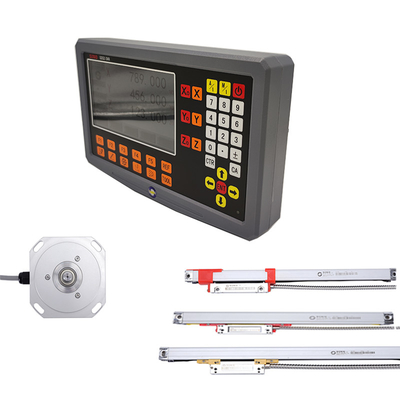

Product image /photos:
The rack in the picture is optioned, not standard product.
