Thông tin chi tiết sản phẩm:
|
| Item: | SINO Miniature High Precision Aluminium Grating Linear Encoder Scale | Model: | KA-500 series: 70-470mm |
|---|---|---|---|
| Usage: | Testing Equipment, Metal Cutting Machine | Type: | Miniature Optical Glass Linear Encoder |
| Resolution: | 0.005 / 0.001 / 0.0005 mm | Output Signal: | Square wave signal TTL / RS422 |
| System: | SINO SDS series digital readout | Keyword: | Miniature linear encoder |
| Làm nổi bật: | CE optical linear encoder scale,TTL digital readout encoder,single axis glass encoder |
||
SINO Miniature High Precision Aluminium Grating Linear Encoder Scale KA-500 70 to 470mm
KA-500 series linear scale is the miniature model. The cross section of scale is only 20*18mm. It's special for some narrow/small installation place or some special small measuring instruments.
Product data sheet
| Model | KA-500 series |
| Travel length(mm) | 70-470 (50mm/Specification) |
| Scaling distance | 0.02mm(50 lines/mm) |
| Accuracy | ±3/±5/±15µm 20℃ |
| Resolution(um) | 5um,1um,0.5um |
| Reference Signal | Every 50mm per length specification |
| Seal protection | IP53 |
| working speed | (resolution)>=5um: >=60m/min <=1um: >=120m/min |
| Output signal | TTL / RS422 |
| Operating temperature | 0℃-45℃ |
| Storage temperature | -20℃--80℃ |
| Humidity | 100% not condensed |
| Voltage | 5V/24V |
Package list: 1 * KA500 Linear encoder scale, 1 *screw sets
Protection Cover & KA-500 Bracket are not included. They can be optioned if it's necessary.

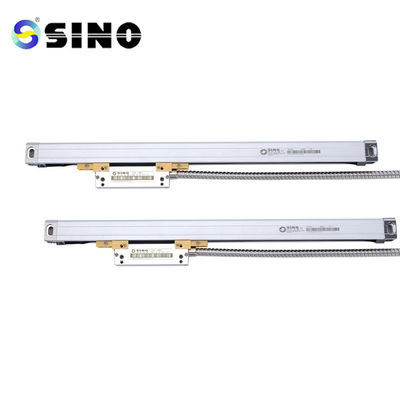

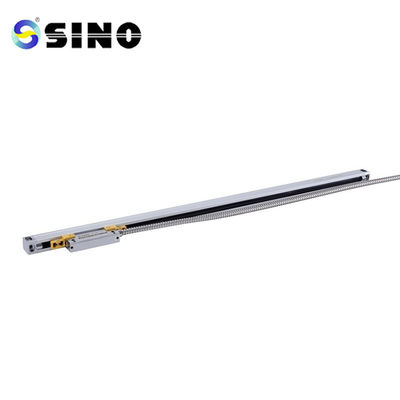

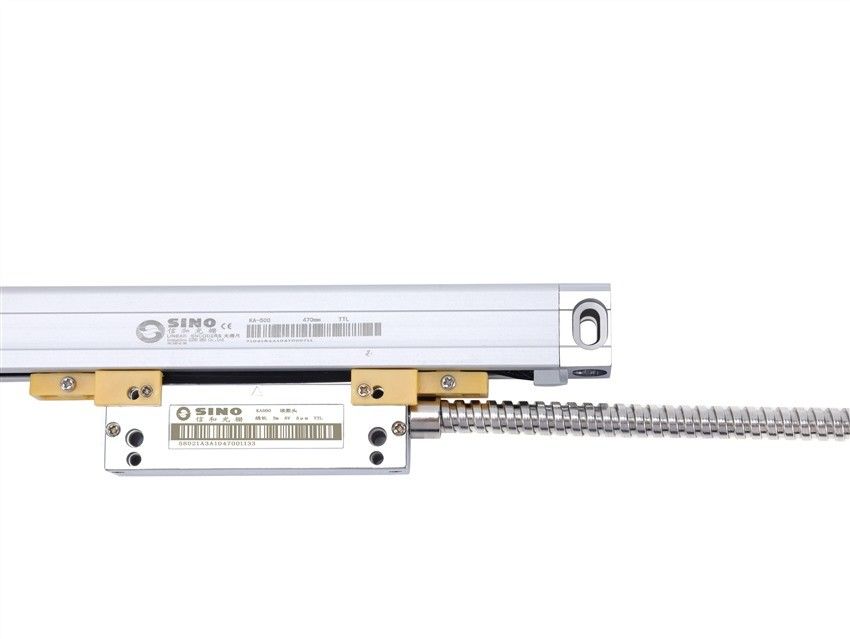

Product images
Covers' Options
All scales will be tested before delivery.
Each scale have its own test report:
It's a sample that KA-500 linear encoder on lathe:
Cover H to protect the scale:
