Thông tin chi tiết sản phẩm:
|
| Tên mặt hàng: | Bộ mã hóa tuyến tính từ SINO KA800MC | Tính năng: | Cân tuyến tính từ tính KA800MC |
|---|---|---|---|
| Kiểu: | máy tiện phay máy mài | Mô hình quy mô: | KA-800MC-5um |
| Tín hiệu đầu ra: | RS422 hoặc TTL | Nghị quyết: | 5um |
| Đo lường: | 10m 12m lên 100m | Độ ẩm: | 100% không ngưng tụ |
| Hệ thống: | HỆ THỐNG SINO DRO | Điện áp cung cấp: | 24VDC hoặc 5VDC |
| Làm nổi bật: | magnetic linear encoder milling machine,digital readout kit 5µm resolution,24V linear encoder with readout |
||

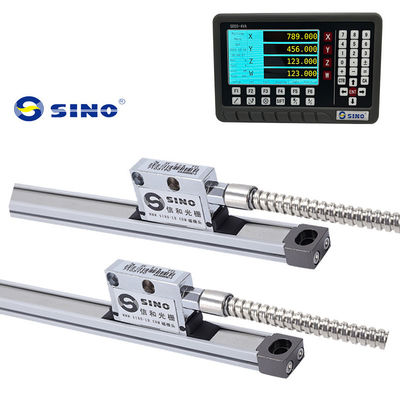

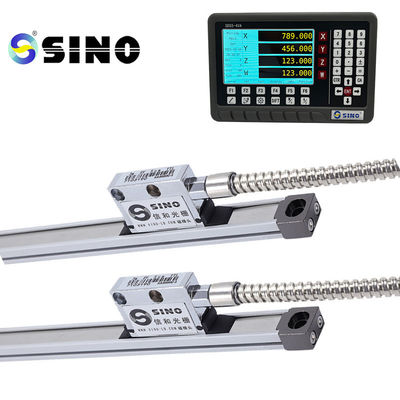

SINO KA800MC Magnetic Linear Encoder Set with Digital Readout for Milling Machines 5µm Resolution 24V
The 24V Magnetic Linear Encoder is specifically designed for milling machines, offering a high precision resolution of 5µm. This encoder ensures accurate position feedback, making it an ideal choice for applications that require fine, reliable measurement. It is engineered to withstand the demands of machining environments, providing durable performance and consistent readings for milling operations. With its advanced technology, this encoder enhances the overall efficiency and accuracy of milling machines, contributing to smoother operations and higher-quality results
Key features
Magnetic technology: The encoder employs magnetic principles to accurately measure linear displacement along the axes of milling machines. This method ensures consistent and precise position feedback, making it highly reliable for machine operations.
5µm resolution: With a 5µm resolution, this encoder can detect minute movements as small as 5 micrometers. This high level of precision enhances the machine’s ability to perform fine adjustments, improving overall machining accuracy.
24V power supply: Designed to operate on a 24V power supply, the encoder delivers stable and reliable performance. Ensure it is connected to a suitable power source for optimal operation.
Simple installation: The RoHS-compliant 24V Magnetic Linear Encoder is designed for easy installation on milling machines. It can be mounted on the machine's moving axis, with its measurement output connecting to the machine's control system or an external digital readout (DRO) for real-time monitoring.
Milling machine compatibility: This encoder is tailored for use with milling machines, making it compatible with a variety of machine types, such as vertical mills, horizontal mills, and CNC milling machines. It provides the flexibility needed to integrate seamlessly into different milling applications.
Product Advantage
Reading head with small size, which occupies a small space and is easy to install.
High Performance: Our SINO magnetic grating and precision optical ruler series have passed strict quality inspection. Meet the standard of accuracy and stiffness good straightness and precise measurement. Travel Length: 120mm to 100,000mm Resolution: 5μm
Sealed read-head with the perfect structure of the profile akes it matches IP67 protection class
KA800MC-5 magnetic scale is mainly suitable for processing and measuring occasions with low and medium precision requirements
Magnetic scales offer several advantages, including:
Accuracy: Magnetic scales offer exceptional high-resolution measurements, often in the sub-micron range, ensuring precise positioning for applications where accuracy is critical. This makes them an excellent choice for high-precision tasks.
Non-contact: Since the read head operates without physical contact with the scale, there is no wear and tear on the system. This non-contact design reduces maintenance requirements, prolonging the lifespan of the entire system.
Immunity to Contaminants: The non-contact nature of magnetic scales provides a high level of resistance to environmental factors such as dust, dirt, and liquids. This immunity makes them ideal for use in challenging conditions where traditional contact-based systems might fail.
Durability: Magnetic scales are built to be tough, with strong resistance to shock and vibration. This durability ensures reliable performance in demanding industrial environments, where other measurement systems might be prone to damage.
Technical parameter
| Magnetic Scale Sensor | |
| Reference signal | Each 5mm(C) |
| Pitch | 5mm |
| Ruler tape specifications | 5+5mm |
| Resolution | 5µm |
| Available Gap | 2mm |
| Accuracy | ± (0.035 + 0.02 x L)mm,L:effective measuring length,Unit:m |
| Cable | 5 core or 8 core |
| Output form | TTL or RS-422 |
| Gap between reading head and protective steel belt | 0.8～1.8mm |
| Supply voltage | 5VDC±5%,24VDC±5% |
| Current consumption (no load) | 40mAMAX |
| Current consumption (with load) | 120mAMAX(5V,RL=120Ω) |
| 60mAMAX(28V,RL =1.2kΩ) | |
| Maximum speed | 5m/s(MS T 5) |
| Anti-vibration | 100m/s2[10Hz～2000Hz] |
| Impact resistance | 1000m/s2(11ms) |
| Protection level of reading head | IP 67 DIN 40050/IEC 529 |
| Operating temperature | -20℃～85℃ |
| Storage temperature | -20℃～85℃ |
| Humidity | 100％ Non-condensing |
| Electrical protection | Power polarity inversion protection, output short-circuit current protection |
| Standard cable | 3m, LMAX=50m (cable of Read- head) |
| Measurement length cable |
|
Encoder Magnetic Mcale Application
Heavy lathes, Milling machine, Drilling, Grinder machine, EDM (electrical discharge machine)
Machining Centers, PVC Cutting Machine, Wood Cutting Machine, Glassworking machine, Material handling

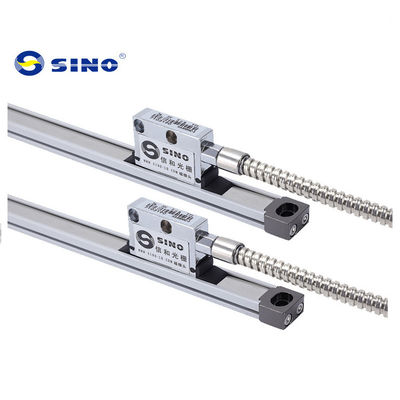

Detail picture:
Why choose us?
Magnetic scale can be cut as your requirement
A fully-sealed read-head with the perfect structure of the profile makes it match the IP67 protection class
Advanced technician and inner structure
Automatic gain control technician reduced the requirement for installation, The gap between the reader and tape can be 3mm (5 microns)
Prepare time:1 weekday, fast Delivery By FedEx IP
Questions & Answer :
1, What’s the max measurement length?
Measurement length up to 100,000mm
2, What are the length 120mm~ 100000mm represent?
Answer: All these lengths mean table travel length ( table moving size, NOT table size ) of the machine x y z-axis. You may need to add an extra 5.5 each for the total length.
3, If I need a full set of 2 Axis dro with scales for my lathe machine, how should I purchase them?
Answer: You can select, they are " 1pc 2 Axis dro " " Travel length **mm of the linear encoder or magnetic encoder" " Travel length ***mm", then you will receive what you want.
4, My machine's x-axis moving length is 260mm, and y-axis moving length is 530mm, can you offer this kind of length that is not listed in the options?
Answer: Each scale measuring range has a 20mm increment. That means the 250mm scale measuring range can reach up to 270mm. So you can select the 270mm scale and 570mm scale for your machine.
5, If i only buy 1 piece scale separately, can I get the user manual?
Answer: The user manual comes with DRO, But you can contact the seller to get the download.
6, What should I choose for my lathe or mill?
Answer: The lathe usually is a 2 axis readout while the mill can be either 2 axes or 3 axis
7, Can I cut the scale if it's too long for my machine?
Answer: Technicality NO. if you are a novice, otherwise, the scale may probably be damaged and cannot be used
8, Are they all shipped by Fed Ex, UPS, DHL?
Answer: Yes. Standard FedEx support and others are available
