Thông tin chi tiết sản phẩm:
|
| Tên mặt hàng: | Bộ 4 trục DRO SDS 200 | Cách sử dụng: | Máy mài mài |
|---|---|---|---|
| Hệ thống: | SDS200 | Mô hình quy mô: | KA-600, KA-300 |
| Tín hiệu: | TTL / rs422 | nghị quyết: | 0,005mm/0,001mm |
| Điện áp: | AC 100V-240V/Yêu cầu của khách hàng | MANG. du lịch: | 1000-3000mm, 70-1020mm |
| Tình trạng: | mới | Dịch vụ hậu mãi được cung cấp: | Hỗ trợ trực tuyến |
| Làm nổi bật: | 4-axis DRO kit for milling machines,metal LCD touch screen DRO,high-resolution 0.005mm milling machine DRO |
||
4-Axis DRO SDS 200 Kit with Metal LCD Full Touch Screen and 0.005mm Resolution, Perfect for Milling Machines
The 2-Axis Metal LCD Full Touch Screen Milling Machine DRO provides a resolution of 0.005mm, delivering high precision for milling tasks. Its full touch screen interface enhances the user experience, making operation intuitive and practical for detailed measurements and adjustments. Perfect for both professionals and hobbyists, this DRO ensures reliable performance across a variety of machining applications.
Description:
Upgrade your milling machine with the LCD Full Touch Screen DRO (Digital Readout) system. Featuring a high resolution of 0.005mm, this system guarantees precise measurement and positioning specifically designed for metal milling applications. The intuitive touch screen interface enables easy navigation and operation, delivering accurate readings and improving overall efficiency in your machining tasks. Experience the convenience and reliability that this advanced DRO system brings to your workflow!
Features:
LCD Full Touch Screen Interface: Provides an easy and intuitive operation for a seamless user experience.
Two Axes Measurement Capability: Specifically designed for X and Y measurements, making it ideal for metal milling machines.
High Resolution of 0.005mm: Ensures precise measurement and positioning, delivering high-quality machining results.
Practical Functionality: Tailored for practical use in metalworking applications, enhancing both efficiency and accuracy.
Benefits:
Accurate Position Measurement: Displays the precise position of the mill's X and Y axes for optimal control.
Precise Positioning: Guarantees accurate results for achieving desired milling outcomes.
User-Friendly Touch Screen Interface: Facilitates convenient operation with an intuitive design for ease of use.
Robust Construction: Built to endure the rigorous demands of metalworking environments.
Designed for Large 2-Axis Milling Machines: Specifically tailored to meet the needs of larger milling setups.
Linear Rulers:
KA-600: Available in lengths from 1000mm to 3000mm, making it ideal for larger machining tasks.
KA-300: Features a compact design with lengths ranging from 70mm to 1020mm, perfect for smaller projects and precision work.

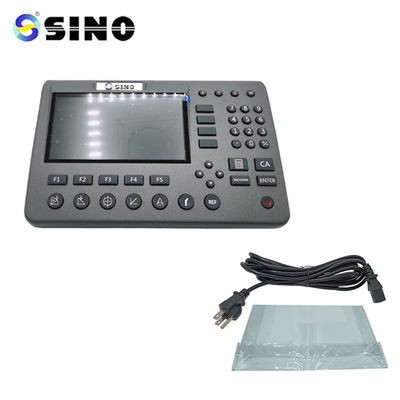

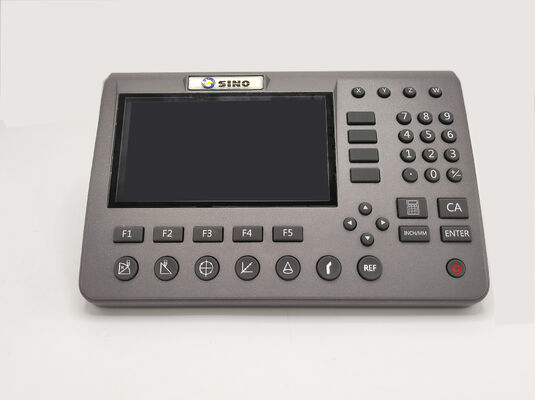

LCD Display Readout:
Model: SDS200
Functionality: Provides clear digital readouts for accurate measurements of both linear rulers.
Key Features:
Accuracy and Precision: The DRO system guarantees accurate and precise measurements, with higher resolution allowing for finer measurement increments.
Display Units: The SDS200 is equipped with a digital display unit that can show multiple measurements simultaneously. Users can easily toggle between different axes or functions, enhancing usability.
Display Technology: Utilizes LED or LCD technology to ensure clear visibility of measurements in various lighting conditions.
This setup is ideal for both professional and hobbyist metalworking applications, combining precision with ease of use.

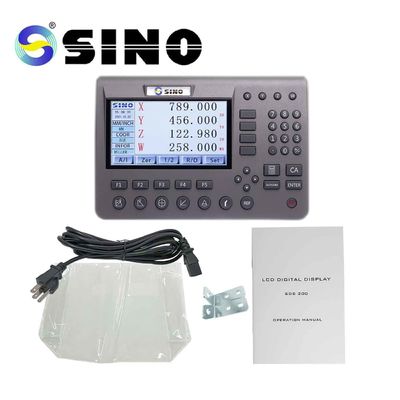

Package list:
| Item name | 4 axes small size metal LCD milling machine Readout kit |
| Digital Readout (DRO) | SDS 200 |
| Linear scale for axis X | 1000-3000mm |
| Linear scale for axis Y | 70-1020mm |
| Rack for DRO | L400 |
| Protection cover for X scale | Type M |
| Protection cover for Y scale | Type D |
| Bracket for scales | T-bracket (1 or 2 sets, depend on the size) |
| Others | Cable / Screws / Manual |
Functions for milling machine:
Simple "R" with Midsplit: A technique for creating a rounded profile with a mid-split, enabling smooth transitions in design.
Line Hole Positioning Using an Angle: This method involves setting precise angles for drilling holes along a line, ensuring accurate placement for assembly or fitting.
Circle PCD Process for Equally Dividing Bevels: Utilizes Pitch Circle Diameter (PCD) to evenly space bevels around a circle, ideal for applications requiring symmetry and balance.
Progressive Machining on the Inner Chamber of a Rectangle: A technique focused on progressively machining the inner chamber of a rectangular component, shaping it for both functionality and aesthetics.
These methods enhance precision and efficiency in machining processes, making them essential for various applications in metalworking.
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
